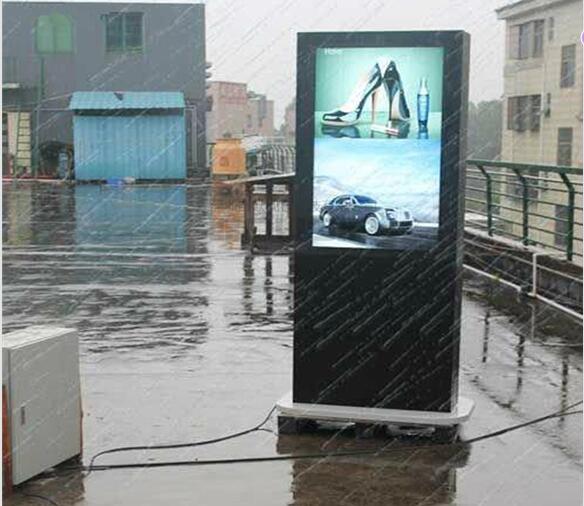

49" Dustproof Outdoor Digital Signage Kiosk Touch Screen Vandal proof
1. IP65 design for outdoor application.
2. High brightness up to 2000cd/m2, readable under sunlight.
3. Build in Airconditioner cooling system, adapted to -40°C--+60°C environment temperature.
4. Lightning protection and heating below zero
5. Fron tempered glass and anti-glare glass
6. Intelligent light system, brightness of screen auto adjusts according to environment light, saving energy.
7. Anti-dust, anti-vandal, anti-theft.
8. Customized design for you without additional cost.
9. Screen sizes available 19-82inch
10. Wall mount, roof hanging and free standing(fixed on ground) all available.
11. Security electric circuit design
12. Build in power timer
13. Silver, White, Black or optional
| Active area size (W x H) | 49”(1073*604mm) |
| Aspect Ratio | 16:9 Portrait |
| Panel resolution (pixels) | 1920*1080 (Full HD) |
| Luminance of white (Brightness) | 2000 cd/m² |
| Contrast ratio | 3000:1 |
| Response time | 5 ms |
| Colour Range | 16.7 Million colours (max) |
| Viewing angle | 178° horizontal / 178° vertical |
| Working parameters | |
| Video inputs | VGA HDMI |
| Audio Interface | AUDIO IN/OUT |
| Auto Brightness Control | Yes (Optional) |
| Temperature control system | Intelligent air conditioner |
| Operating temperature range | -40°C to +55°C |
| Storage Temperature | 0 to 50C |
| Operating Humidity | 5% to100% |
| Input voltage | AC 108-115V,50/60Hz |
| AC 208-240 V, 50/60 Hz |
| Power Consumption | 1.3 kW (Mainly for AC starting) |
| Waterproof enclosure | |
| IP Class | IP65 |
| Enclosure material | Zinc coated steel |
| Front glass type | Strengthen 6mm AR glass |
| Packing Size | 2160*960*520 mm |
| Weight | 176kg |
Configuration options:
| 1. Touch screen option | Nano, Capacitive |
| 2. Network version | LAN/WIFI/3G as options, remote control from server |
| 3. All in one PC | Integrated PC board, custom hardware. |
| 4. Standalone Ad function | With professional advertising playerboard. |
| 5. Monitor only | With DVI/VGA input, flexible connecting your device. |
Application
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar,
Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop,
Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model
houses, Sales offices, the entrance of elevator, etc
